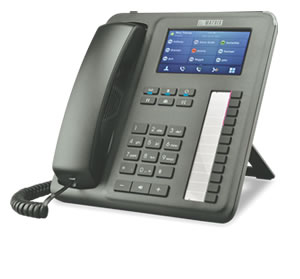

SPARSH VP330E
The Touch Screen IP Phone
Overview
Desk Phone is the backbone of communication for controlling business operations. Today's efficient managers require desk phone with elegant design, smart functionalities and multi-tasking ability as their command center. Matrix presents SPARSH VP330E – The Touch Screen IP Phone, offering perfect blend of Style and Substance for desktop telephony experience.
SPARSH VP330E is an intuitive Touch Screen IP phone integrating the traditional desk phone and 4.3 inch vivid color display in a single device. With On-Screen BLF Keys, Presence and Power over Ethernet (PoE), SPARSH VP330E offers productivity features for speed of operations and collaboration. Thus, making it an ideal choice for reliable and flawless communication.
Specifications
|
Audio Features |
Full-duplex Hands-free Speakerphone with AEC Codecs: G.711(A/μ), G.722, G.723, G.729, AEC, AJB, AGC |
|
Phone Features |
Call Hold Mute Do Not Disturb Speed Dial Hotline Redial Call Back Auto Answer Call Forward Call Waiting Call Transfer Room Monitoring Conference Directory Call Logs Paging Dial-by-Name BLF Softkeys Presence |
|
Call Management |
480x272 pixel Touch-Screen Colour LCD LED for Incoming/Ongoing Call, Mute, Hold Intuitive User Interface with Icons and Soft keys Multiple Languages Caller ID with Name, Number |
|
Display |
132x64-pixel Graphical LCD LED for Call and Message Waiting Indication Intuitive User Interface with Icons and Soft keys National Language Selection Caller ID with Name, Number |
|
Networking and Security |
SIP v2 (RFC3261) IP Assignment: Static/DHCP/PPPoE QoS: 802.1p/Q Tagging (VLAN), Layer 3 ToS, DSCP SRTP for Voice Transport Layer Security (TLS) AES Encryption for Configuration File Digest Authentication using MD5 |
|
Physical Features |
2 x 10/100 Mbps LAN & PC Ports 33 keys 1 x RJ9 Handset Port 1 x RJ9 Headset Port 1 USB Port Dimension (W x D x H): 207 X 335 X 78 |
|
Power Supply |
Power Adapter: 5VDC/600mA (Included in the Box) Power over Ethernet (IEEE 802.3af) Power Consumption: 5W (Typical) Connector: DC Power Jack |
|
Mechanical |
Weight: 840 Kgs Installation: Wall Mount, Table-top Color: Black |
|
Environmental |
Operating Temperature Range = 0 to 45°C Storage Temperature = 0 to 55°C Operating and Storage Humidity = 5 to 95%, RH, Non-Condensing |
|
Certifications |
CE, FCC-15, RoHS |
