Palm Vein Controllers

Palm Vein Controllers



Product Code  :  Palm Vein Controllers

Availability  :   In Stock

Download Brochure  Add to Enquiry



Overview

Biometric devices used for access control and time-attendance helps to enhance security and productivity of an organization. However, most of them have to compromise between the security it offers and convenience it provides. The compromise could be on having lower accuracy, higher rejection ratio, needing physical contact, hygiene concern and possibility of copying the biometric pattern.

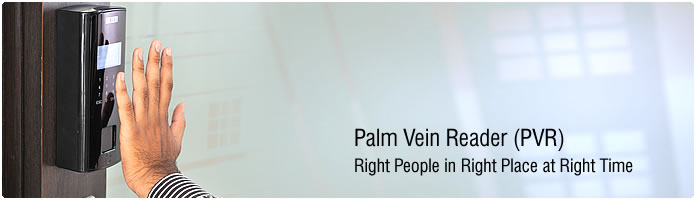

COSEC DOOR PVR is a highly secure and contactless biometric device that works by reading the vascular pattern of the palm. These patterns are unique to each individual and exists underneath the skin layer so they cannot be forged thereby making it more secure than any other biometric device. Being contactless and technologically advanced, it is appropriate for places like hospitals, chemical industries, nuclear stations, factories, corporate houses, R&D centers, financial institutes and many others where security and hygiene cannot be compromised.

Technical Specifications

Credential Support Card, Palm Vein & PIN
User Capacity 10,000
Templates per User Up to 2
Palm Template Capacity 20,000 Templates
Cards per User 2 Any Type)
Type of Card Smart and Proximity
LCD (128x64 Dot-Matrix) Yes
Touch Sense Keys (16) Yes
Verification Method 1:1, 1:N and 1:G
Events Buffer 1,00,000
Wireless Connectivity Wi-Fi, 2G, 3G, GPRS, CDMA
USB 2 Ports
Communication Ethernet
Communication Speed 10/100Mbps on Ethernet
Tamper Detection Yes
Buzzer Yes
LED Indication 4 LEDs (Status, Alarm, Allowed and Denied)
External Reader 1 Port for Card Reader
External Reader Interfaces RS-232 and Wiegand
External Reader Power 12VDC@0.5A
Exit Switch Port Yes
Door Status Sense Programmable NO, NC, Supervised
Door Lock Relay Relay SPDT, Form C, 1A@30VDC
Door Lock Power Internal 12VDC@0.5A or External
Auxiliary Input Port Programmable NO, NC, Supervised
Auxiliary Output Relay Relay SPDT, Form C, 1A@30VDC
CPU 1 GHz ARM Cortex A-8 based processor
Memory 256MB Flash + 512MB DDR3 RAM
Input Power 12VDC@2A
Dimensions (WÑ…HÑ…D) 100×220×55mm (3.9”Ñ…8.7”Ñ…2.2”)
Weight 0.49Kg (1.07Lbs)
Environment 0°C to +50°C (32°F to 122°F), 5% to 95% RH Non-Condensing

Features

  • Hi-tech Palm Vein Reader
  • Access Control and Time-Attendance
  • Built-in Wi-Fi Module
  • 3G, 2G, GSM and CDMA Connectivity
  • 20,000 Palm Templates
  • 1,00,000 Events Buffer
  • Ethernet and USB Interface
  • Dot Matrix lcd and Touch Sense Keypad
  • Support RFID Card and PIN
  • 1:1, 1:N and 1:G Verification
  • Detachable Hand Guide

Benefits

  • Highly Secured for Access Control Application
  • Higher Authentication Accuracy
  • Cannot be Forged
  • Contactless Design Minimizes Hygiene Concerns and Psychological Resistance

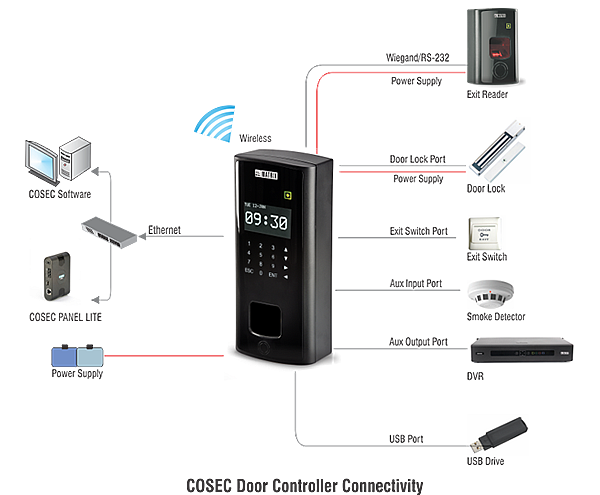

Connectivity Diagram

Matrix | COSEC Door Controller Connectivity Detailed Diagram
