Access Control & Time-Attendance Terminals
Product Code : Terminals
Availability : In Stock
Matrix COSEC Access Control and Time-Attendance door controllers are the brain of the system which allows only authorized users in the premises and registers their entry and exit time. These door controllers are available in various models with advanced connectivity and interface options to tackle present and future access control and time-attendance needs of any type of the businesses.
Overview
Matrix COSEC Access Control and Time-Attendance door controllers are the brain of the system which allows only authorized users in the premises and registers their entry and exit time. These door controllers are available in various models with advanced connectivity and interface options to tackle present and future access control and time-attendance needs of any type of the businesses.
Elegant Design
- Award Winning Design
- 128x64 LCD Display and Touch Sense Keypad
- Pluggable Card Reader Module
- Audio Visual Indications
Fast and Accurate Fingerprint Identification
- Identification in less than 1 Second
- 1:1 and 1:N Verification
Better Storage Capacity
- 50,000 Events Storage
- 9600 Fingerprint Templates
Versatile Reader
- Fingerprint, RFID Card Reader and PIN
- Optical Fingerprint Reader
- Proximity and Smart Card Reader
- EM Prox, HID Prox, Mifare and HID iCLASS
Easy Operation and Installation
- User Friendly, Fast and Easy Operations
- Standalone and Network Operation
- Easy Mounting on a Back Plate
- Leverage Existing Network Infrastructure
- Minimum Wiring
Enhanced Connectivity Options
- Wired or Wireless Connectivity
- Ethernet and RS-485
- Wi-Fi, 3G, 2G, GPRS, UMTS and USB
Various Interfaces
- Door Relay and Door Sense
- Auxiliary Input and Output Port
- Exit Reader and Exit Switch
Technical Specifications
| Credentials | DOOR CAP | DOOR FOP | DOOR CAW | DOOR FOW |
| Card and PIN | Card, Fingerprint & PIN | Card & PIN | Card, Fingerprint & PIN | |
| Fingerprint Module | NA | Optical | NA | Optical |
| Finger Templates | NA | 9600 | NA | 9600 |
| LCD (128x64 Dot-Matrix) | Yes | |||
| Touch Sense Keys (16) | Yes | |||
| USB | Yes | |||
| Communication | Ethernet and RS485 | Ethernet, Wi-Fi and 3G | ||
| Events Buffer | 50,000 | 5,00,000 | ||
| Communication Speed | 10/100Mbps on Ethernet and 115.2 Kbps on RS485 | |||
| External Reader | 1 Port for Card or Fingerprint Reader | |||
| External Reader Interfaces | RS232 and Wiegand | |||
| External Reader Power | 12VDC@0.5A | |||
| Exit Switch Port | Yes | |||
| Door Status Sense | Programmable NO, NC, Supervised | |||
| Door Lock Relay | Relay SPDT, Form C, 1A@30VDC | |||
| Door Lock Power | Internal12VDC@0.5A or External | |||
| Auxiliary Input Port | Programmable NO, NC, Supervised | |||
| Auxiliary Output Relay | Relay SPDT, Form C, 1A@30VDC | |||
| Tamper Detection | Yes | |||
| Buzzer | Yes | |||
| Indications | 4 LEDs (Status, Alarm, Allowed and Denied) | |||
| CPU | 32 Bit RISC | |||
| Memory | 512KB Rom and 128KB RAM | |||
| Input Power | 12 VDC@1A | |||
| Dimensions (WÑ…HÑ…D) | 100×220×55mm (3.9”Ñ…8.7”Ñ…2.2”) | |||
| Weight | 0.46Kg (1.00Lbs) | 0.49Kg (1.07Lbs) | ||
| Environment | 0° C to +50°C (32°F to 122°F), 5% to 95% RH Non-Condensing | |||
Applications

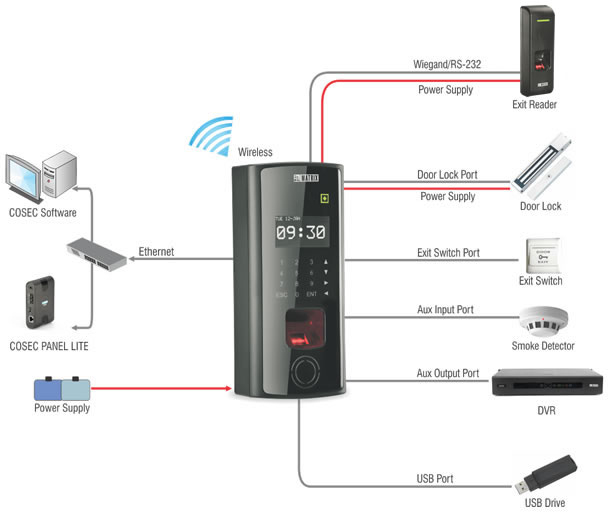

Interface Diagram

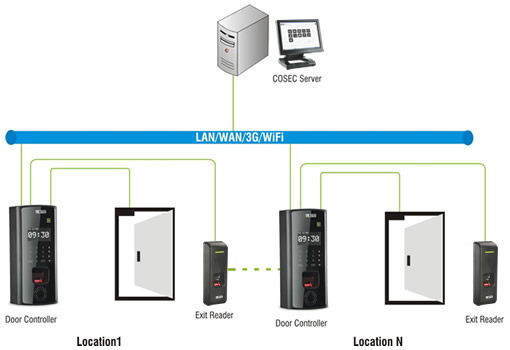

Network Application

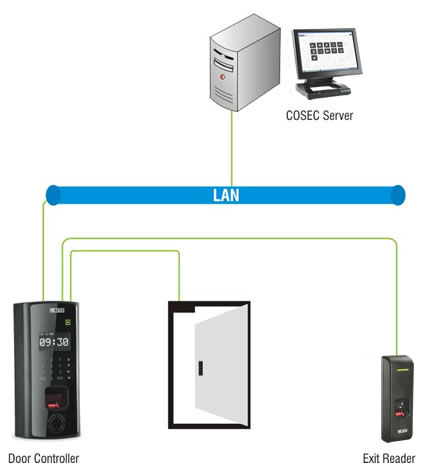

Stand-alone
