Access Control and Time-Attendance Terminals
Product Code : Access Control and Time-Attendance Terminals
Availability : In Stock
Matrix COSEC VEGA door-controllers are premium devices engineered with careful blend of aesthetics, size, connectivity, reliability and ease-of-use. VEGA series are perfect fit for access control and time-attendance solution for any organization
Overview
Matrix COSEC VEGA door controllers offer cutting edge advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof access control and time-attendance solution for corporate, manufacturing units, government organizations and many more. They are available in two different models for access control and time-attendance application.
Technical Specifications
| Credential Support | COSEC VEGA FAX | COSEC VEGA CAX |
| Finger, Card and Pin | Card and Pin | |
| Fingerprint Sensor | Optical | NA |
| Templates Capacity | 9600 (1:N mode), and 100,000 (1:1 mode) | NA |
| Templates Per User | Up to 10 | NA |
| Cards Per User | Up to 2 | |
| Type of Card | EM Prox, HID iCLASS & Mifare and UHF Card | |
| User Capacity | 50,000 | |
| Display | 3.5" TFT Display with Capacitive Touch Panel | |
| Communication Port | Ethernet, Wi-Fi, Mobile Broadband (2G-3G) | |
| Built-in PoE | Yes | |
| Built-in Wi-Fi | Yes | |
| USB | 1 USB Port (for Data Transfer and Mobile Broadband) | |
| Event Buffer | 5,00,000 | |
| Exit Switch Port | Yes | |
| Exit Reader | Yes | |
| Reader Interface Types | RS-232 and Wiegand | |
| Reader Power Output | Internal 12 VDC @ 0.5 A or External | |
| Door Status Sense | Programmable NO, NC , Supervised | |
| Door Lock Relay | Relay SPDT, Form C, 1A @ 30 VDC | |
| Door Lock Power | Internal 12 VDC @ 0.5 A or External | |
| Auxiliary Input Ports | Programmable NO, NC, Supervised | |
| Auxiliary output Relay | Relay SPDT, Form C, 1A @ 30 VDC | |
| Tamper Detection | Yes | |
| Input Power | 12 VDC@2A | |
| Operating Temperature | 0° C to +50°C (32°F to 122°F), 5% to 95% RH Non-Condensing | |
Key Features
- 3.5" TFT Display
- Touchscreen
- IP65 Rating
- Audio Visual Indications
- Pluggable Card Reader Module
- 50,000 Users
- 9600 Fingerprint Templates (1:N Mode)
- 100,000 Fingerprint Templates (1:1 Mode)
- 500,000 Event Storage
- Ethernet
- Power over Ethernet
- Built-in Wi-Fi
- Mobile Broadband (2G/3G)
- Fingerprint, Card and PIN
- Optical Fingerprint Reader
- Proximity and Smart Card Reader
- EM Prox, HID iCLASS, Mifare and UHF
- Door Relay and Door Status Port
- Exit Switch and Exit Reader Port
- Auxiliary Input Port and Auxiliary Output Port
- User Friendly GUI
- Standalone and Network Operation
- Easy Mounting on Back Plate
- Leverage Existing Network Infrastructure
- Minimum Wiring

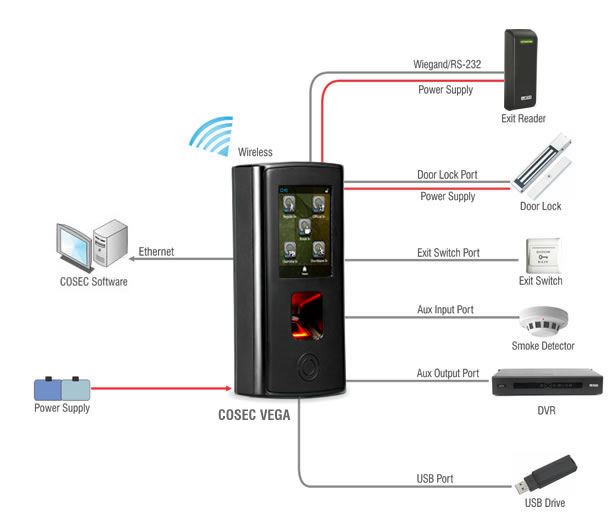

Connectivity Diagram
