SATATYA NVR Standard

SATATYA NVR Standard



Product Code  :  NVR

Availability  :   In Stock

Matrix SATATYA NVR8S is an IP video surveillance solution for centralized surveillance management. This reliable NVR has feature rich Centralized Management Software (CMS), NVR Client and Mobile Viewer which offer crystal clear recording and playback, remote monitoring, quick search, backup redundancy and prompt alerts for events. All these features ensure Matrix SATATYA NVR8S has an edge over the other NVRs in the market by significantly improving security, productivity and discipline of any organization.

Download Brochure  Add to Enquiry



Overview

Matrix SATATYA NVR8S is an IP video surveillance solution for centralized surveillance management. This reliable NVR has feature rich Centralized Management Software (CMS), NVR Client and Mobile Viewer which offer crystal clear recording and playback, remote monitoring, quick search, backup redundancy and prompt alerts for events. All these features ensure Matrix SATATYA NVR8S has an edge over the other NVRs in the market by significantly improving security, productivity and discipline of any organization.

Differentiators


Key Functions MATRIX SATATYA NVR8S OTHER NVRs
Recording
  • Camera wise Manual and Scheduled Centralized Recording
  • Supports all Cameras’ Full HD Recording
OTHER NVRs
Management and Monitoring
  • CMS, Web Client, Mobile Viewer and Local
  • Monitor Multiple NVRs from a Single NVR Locally
OTHER NVRs
Playback and Search
  • Timeline and Event based Search
  • Synchronous and Asynchronous Playback
OTHER NVRs
Backup
  • Scheduled and Manual Backup on USB/FTP and NAS
  • Crop and Backup in AVI format
OTHER NVRs
Data Storage and Security
  • Camera wise Recording Retention
  • Real-Time Storage Calculator
OTHER NVRs
Events and Alerts
  • Identifies Motion, Camera Tamper, Hard Disk Full, Video Loss, View Tamper, Network Disconnection etc.
  • SMS Notification and Email Notification with Snapshot as an Attachment
OTHER NVRs
Connectivity
  • Mobile Broadband (3G /LTE)
  • Free Matrix DNS
OTHER NVRs
Bandwidth Optimization
  • Dual Streaming for Viewing and Recording
  • Camera wise Constant and Variable Bit Rate
OTHER NVRs
User Management
  • Camera wise User Roles and Rights
  • IP and MAC based Access and Blocking of Users
OTHER NVRs
Integration
  • Ethernet based Integration with Matrix Access Control
  • 3rd Party Integration with Access Control and Fire Alarm
OTHER NVRs
Interoperability
  • All ONVIF or RTSP Compliant Cameras
  • Direct Support of Axis, Acti, Vivotek, Sony, Samsung, Panasonic, Grandstream and other Brand Cameras
OTHER NVRs

Technical Specifications

Model SATATYA NVR8S
Video Compression H.264, MPEG-4, Motion JPEG
Input 8 IP Channels
Output 1 VGA, 1 HDMI
Recording Image Resolution 720P, D1, 2CIF,CIF, QCIF
Recording Modes Manual, Scheduled, Alarm, COSEC
Display Split 1x1, 2x2, 3x3, 4x4, 5+1, 7+1, 4+3, 8+2, 12+1, 1+12, 1+9, 4+9, 2+12
Resolution As Per Camera Support, Maximum Up to 2 Megapixel
Live View Directly through Camera, NVR
Playback & Backup Synchronous Playback 4 Channels
Search Mode Timeline based, Camera, Recording Type
Backup Manual Backup over USB, Scheduled Backup over USB/FTP and NAS
Storage SATA Interface 1 SATA Ports (4TB Capacity)
Interfaces Communication Interface 1 RJ45 10/100 Mbps Adaptive Ethernet Interface
USB 2 Ports (1x3G Connectivity, Mouse and 1xBackup)
Camera Camera Support All ONVIF2.0, Axis, Acti, Samsung, Panasonic, Sony, Vivotek, Everfocus, HikVision, Planet, Zavio, Grandstream and others

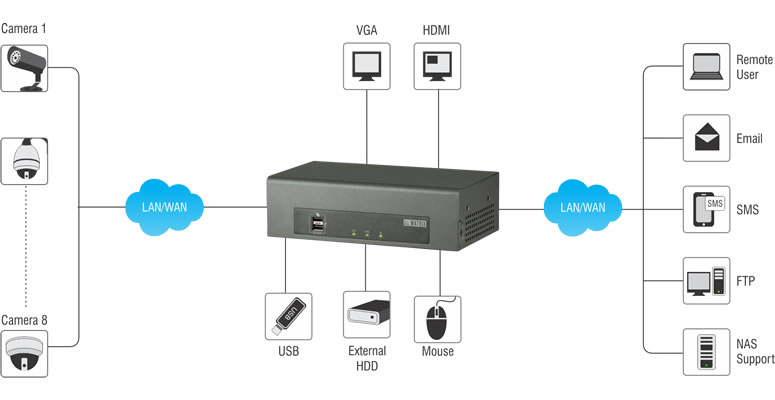

Interfacing Diagram

Interface Diagram
