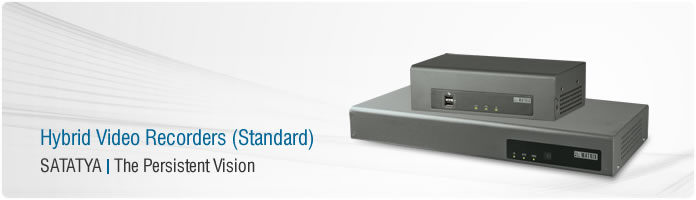

SATATYA HVR Standard



Product Code  :  SATATYA HVR Standard

Availability  :   In Stock

Prompt video surveillance goes a long way in enhancing the security, productivity and safety of any organization. Most of them have to compromise between cost of the solution and the effectiveness it offers, i.e. between analog cameras and IP cameras. The SATATYA HVR is an instant solution which utilizes the cost benefits of analog solution and security enhancements of IP solution. Moreover, SATATYA Centralized Management Software (CMS), HVR Client and Mobile Viewer provide software solutions for centralized and remote management, recording and monitoring of the entire organization.

Add to Enquiry



Overview

Prompt video surveillance goes a long way in enhancing the security, productivity and safety of any organization. Most of them have to compromise between cost of the solution and the effectiveness it offers, i.e. between analog cameras and IP cameras. The SATATYA HVR is an instant solution which utilizes the cost benefits of analog solution and security enhancements of IP solution. Moreover, SATATYA Centralized Management Software (CMS), HVR Client and Mobile Viewer provide software solutions for centralized and remote management, recording and monitoring of the entire organization.

Differentiators


Key Functions MATRIX SATATYA HVR OTHER HVRs
Recording
  • Camera wise Manual and Scheduled Centralized Recording
  • Supports Full HD Recording of all Cameras
 OTHER HVRs
Management and Monitoring
  • CMS, Web Client, Mobile Viewer and Local
  • Monitor Multiple HVRs from a Single HVR Locally
 Other HVRs
Playback and Search
  • Timeline and Event based Search
  • Synchronous and Asynchronous Playback
 Other HVRs
Backup
  • Scheduled and Manual Backup on USB/FTP and NAS
  • Crop and Backup in AVI format
 Other HVRs
Data Storage and Security
  • Camera wise Recording Retention
  • Real-Time Storage Calculator
 Other HVRs
Events and Alerts
  • Identifies Motion, Camera Tamper, Hard Disk Full, Video Loss, View Tamper, Network Disconnection etc.
  • SMS Notification and Email Notification with Snapshot as an Attachment
 Other HVRs
Connectivity
  • Mobile Broadband (3G/LTE)
  • Free Matrix DNS
 Other HVRs
Bandwidth Optimization
  • Dual Streaming for Viewing and Recording
  • Camera wise Constant and Variable Bit Rate
 Other HVRs
User Management
  • Camera wise User Roles and Rights
  • IP and MAC based Access and Blocking of Users
 Other HVRs
Integration
  • Ethernet based Integration with Matrix Access Control
  • 3rdParty Integration with Access Control and Fire Alarm
 Other HVRs
Interoperability
  • All ONVIF or RTSP Compliant Cameras
  • Direct Support of Axis, Acti, Vivotek, Sony, Samsung, Panasonic, Grandstream and other Brand Cameras
 Other HVRs



Technical Specifications

Model SATATYA HVR0408S SATATYA HVR0824S SATATYA HVR1624S
Video Input 4 Analog Channels, 8 IP Channels 8 Analog Channels, 16 IP Channels 16 Analog Channels, 16 IP Channels
Total Channels 8 24 24
Standard PAL (704x576) and NTSC(704x480)
Compression H.264
Output 1 VGA 1 Spot Video (BNC), 1 VGA, 1HDMI
Audio Compression - G.711
Input - 2 Channel, RCA Ports
Output - 1 Channel, RCA Port
Alarm Input - 4
Output - 1
Recording Image Resolution 1080P, 720P, WD1, D1
Pre-Record Up to 30 Sec
Post-Record 10-300 Sec
Snapshot Format JPEG
Recording Modes Manual, Scheduled, Alarm, COSEC
Playback & Backup Synchronous Playback 4
Search Mode Timeline Based, Channel, Recording Type
Playback Modes Fast Reverse, Fast Forward, Slow Forward, Previous Frame, Next Frame, Different Speed
Backup Manual Backup over USB and Scheduled Backup over USB/FTP and NAS
Network Functions TCP/IP, DHCP, PPPOE, DNS, DDNS, Matrix DNS Server, FTP, SMTP, NTP
Remote Operation Monitor, PTZ Control, Playback, System Setting, File Download, Log Information, Upgrade
Storage SATA Interface 1 SATA Ports (4TB Capacity)
Interfaces Communication Interface 1 RJ45 10/100Mbps Adaptive Ethernet Interface
USB 2 Ports (1x3G connectivity, Mouse & 1xBackup)
RS-485 - 1 Port (PTZ Control)

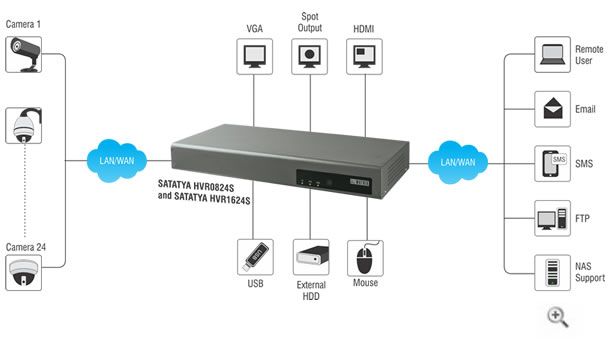

Interfacing Diagram

Interface Diagram
