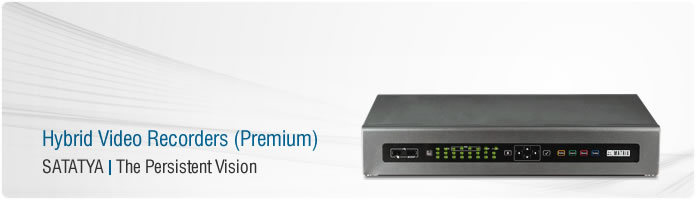

SATATYA HVR Premium
Overview
Prompt video surveillance goes a long way in enhancing the security, productivity and safety of any organization. Most of them have to compromise between cost of the solution and the effectiveness it offers, i.e. between analog cameras and IP cameras. The SATATYA HVR is an instant solution which utilizes the cost benefits of analog solution and security enhancements of IP solution. Moreover, SATATYA Centralized Management Software (CMS), HVR Client and Mobile Viewer provide software solutions for centralized and remote management, recording and monitoring of the entire organization.
Differentiators
Key Functions | MATRIX SATATYA HVR | OTHER HVRs |
Recording |
|
![]() |
Management and Monitoring |
|
![]() |
Playback and Search |
|
![]() |
Backup |
|
![]() |
Data Storage and Security |
|
![]() |
Events and Alerts |
|
![]() |
Interfaces |
|
![]() |
Connectivity |
|
![]() |
Bandwidth Optimization |
|
![]() |
User Management |
|
![]() |
Integration |
|
![]() |
Interoperability |
|
![]() |
Technical Specifications
Model | SATATYA HVR0408P | SATATYA HVR0824P | SATATYA HVR1624P | |
Video | Compression | H.264/MPEG4/Motion JPEG | ||
Input | 4 Analog Channels, 8 IP Channels | 8 Analog Channels, 24 IP Channels | 16 Analog Channels, 24 IP Channels | |
Total Channels | 8 | 24 | 24 | |
Standard | PAL (704x576) and NTSC ( 704x480) | |||
Output | 1 HDMI, 1 VGA, 1 CVBS Spot, 1 CVBS Main | 2 HDMI, 1 VGA , 1 CVBS Spot, 1 CVBS Main | ||
Loop Output | No | 8 | 16 | |
Audio | Compression | Analog: G.711 and IP Input: G.711, G.726, G.729 and AAC (Depending on Camera) | ||
Input | 2 Channel, RCA Ports | 8 Channel, Loop Input | 16 Channel, Loop Input | |
Output | 1 Channel, RCA Port | 1 Channel, RCA Port | 1 Channel, RCA Port | |
Alarm | Input | 2 | 8 | 8 |
Output | 1 | 3 | 3 | |
Recording | Image Resolution | Full HD, 720P, 4CIF, 2CIF, CIF, QCIF | ||
Recording Modes | Manual, Scheduled, Alarm | |||
Playback & Backup | Search Mode | Channel, Date and Time, Event, Recording Type | ||
Synchronous Playback | 4 | |||
Backup | Manual Backup over USB and Scheduled Backup over USB/FTP and NAS | |||
Storage | SATA Interface (4TB Per Port) | 1 SATA Port | 4 SATA Ports | 4 SATA Ports |
Auxiliary Interface | Communication Interface | 1 RJ-45 Port 10/100 Mbps Adaptive Ethernet Interface | 2×Gigabit RJ45 Ethernet Interfaces | |
USB 2.0 Interface | 2 Ports | 4 Ports | 4 Ports | |
RS-485 | 1 Port (PTZ Control) |

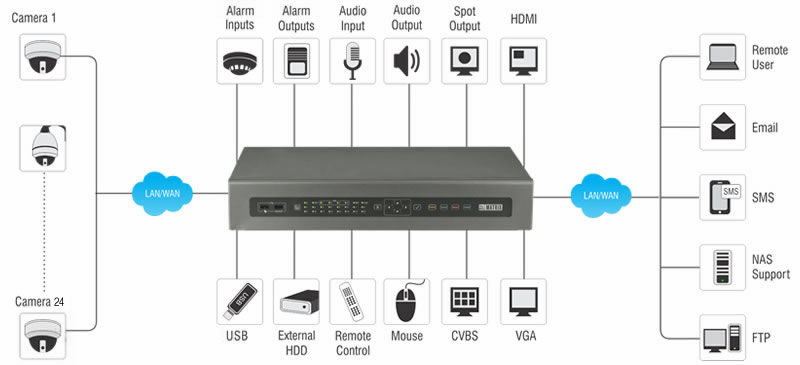

Interfacing Diagram
