Overview
IP Cameras are considered to be the next big thing in the video surveillance industry. IP technology is slowly and gradually replacing the closed circuit analog technology. For larger facilities and higher security, IP cameras are superior in terms of performance and quality.

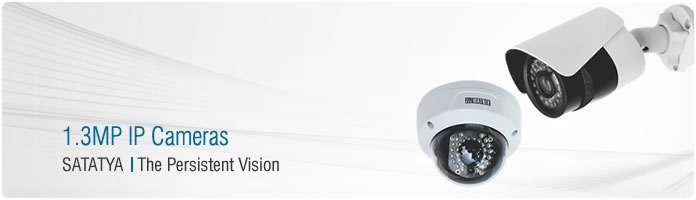

Matrix 1.3MP IP cameras come in IR Bullet, IR Dome to cover up to 30m and are made for various indoor and outdoor purposes.
Technical Specifications
|
Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min Illumination |
0.01Lux @F1.2, AGC ON, 0Lux with IR |
|
Shutter Time |
1/25s (1/30s) ~ 1/100,000s |
|
Lens |
Board Lens 4mm/ F2.0 |
|
Lens Mount |
M12 |
|
Day & Night |
IR cut filter with auto switch |
|
Digital Noise Reduction |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
|
Compression Standard |
|
Video Compression |
H.264/M-JPEG |
|
Bit Rate |
32 Kbps ~ 16 Mbps |
|
Dual Stream |
Yes |
|
|
Image |
|
Maximum Image Resolution |
1280 × 960 |
|
Frame Rate |
50Hz: 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps (1280 × 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480) |
|
Image Settings |
Saturation, Brightness, Contrast, Sharpness , Exposure Settings Adjustable |
|
BLC |
Yes, Zone Configurable |
|
|
Network |
|
Network Storage |
NAS |
|
Alarm Trigger |
Motion Detection, Video Tamper |
|
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv6 |
|
Interoperability |
ONVIF, CGI, PSIA |
|
Security |
User Authentication, Watermark |
|
|
Interface |
|
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
|
Reset Button |
Yes |
|
|
General |
|
Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) Humidity 95% or less (Non-Condensing) |
|
Power Supply |
12 VDC ± 10% , PoE (802.3af) |
|
Power Consumption |
Max. 5W (max. 7W with IR cut filter on) |
|
Certifications |
CE, FCC, UL and RoHS |
|
Weather Proof |
IP66 |
|
Number of IR LEDs |
30 Pieces IR Array LEDs |
|
IR Range |
Approx. 20 to 30 meters |
|
Dimension |
60.4 x 76.9 x 139.2mm |
|
Weight |
500g (1.1 lbs) |
|
SATATYA
CIBR13FL60CW
|
Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min Illumination |
0.01Lux @F1.2, AGC ON, 0Lux with IR |
|
Shutter Time |
1/25s (1/30s) ~ 1/100,000s |
|
Lens |
Board Lens 6mm/ F2.0 |
|
Lens Mount |
M12 |
|
Day & Night |
IR cut filter with auto switch |
|
Digital Noise Reduction |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
|
Compression Standard |
|
Video Compression |
H.264/M-JPEG |
|
Bit Rate |
32 Kbps ~ 16 Mbps |
|
Dual Stream |
Yes |
|
|
Image |
|
Maximum Image Resolution |
1280 × 960 |
|
Frame Rate |
50Hz: 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps (1280 × 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480) |
|
Image Settings |
Saturation, Brightness, Contrast, Sharpness , Exposure Settings Adjustable |
|
BLC |
Yes, Zone Configurable |
|
|
Network |
|
Network Storage |
NAS |
|
Alarm Trigger |
Motion Detection, Video Tamper |
|
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv6 |
|
Interoperability |
ONVIF, CGI, PSIA |
|
Security |
User Authentication, Watermark |
|
|
Interface |
|
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
|
Reset Button |
Yes |
|
|
General |
|
Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) Humidity 95% or less (Non-Condensing) |
|
Power Supply |
12 VDC ± 10% , PoE (802.3af) |
|
Power Consumption |
Max. 5W (max. 7W with IR cut filter on) |
|
Certifications |
CE, FCC, UL and RoHS |
|
Weather Proof |
IP66 |
|
Number of IR LEDs |
30 Pieces IR Array LEDs |
|
IR Range |
Approx. 20 to 30 meters |
|
Dimension |
60.4 x 76.9 x 139.2mm |
|
Weight |
500g (1.1 lbs) |
|
SATATYA
CIDR13FL40CW
|
Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min Illumination |
0.01Lux @F1.2, AGC ON, 0Lux with IR |
|
Shutter Time |
1/25s (1/30s) ~ 1/100,000s |
|
Lens |
Board Lens 4mm/ F2.0 |
|
Lens Mount |
M12 |
|
Day & Night |
IR cut filter with auto switch |
|
Digital Noise Reduction |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
|
Compression Standard |
|
Video Compression |
H.264/M-JPEG |
|
Bit Rate |
32 Kbps ~ 16 Mbps |
|
Dual Stream |
Yes |
|
|
Image |
|
Maximum Image Resolution |
1280 × 960 |
|
Frame Rate |
50Hz: 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps (1280 × 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480) |
|
Image Settings |
Saturation, Brightness, Contrast, Sharpness , Exposure Settings Adjustable |
|
BLC |
Yes, Zone Configurable |
|
|
Network |
|
Network Storage |
NAS |
|
Alarm Trigger |
Motion Detection, Video Tamper |
|
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv6 |
|
Interoperability |
ONVIF, CGI, PSIA |
|
Security |
User Authentication, Watermark |
|
|
Interface |
|
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
|
Reset Button |
Yes |
|
|
General |
|
Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) Humidity 95% or less (Non-Condensing) |
|
Power Supply |
12 VDC ± 10% , PoE (802.3af) |
|
Power Consumption |
Max. 5W (max. 7W with IR cut filter on) |
|
Impact Protection |
IEC60068-275Eh, 50J; EN50102, up to IK10 |
|
Certifications |
CE, FCC, UL and RoHS |
|
Weather Proof |
IP66 |
|
Number of IR LEDs |
30 Pieces IR Array LEDs |
|
IR Range |
Approx. 20 to 30 meters |
|
Dimension |
Φ 111 × 82 mm |
|
Weight |
500g (1.1 lbs) |
|
