Overview
IP Cameras are considered to be the next big thing in the video surveillance industry. IP PTZ technology provides exceptional performance and inspection for outdoor purposes. IP PTZ cameras provide higher image quality, audio facilities, simplified installation etc. for better security in outdoor installations.

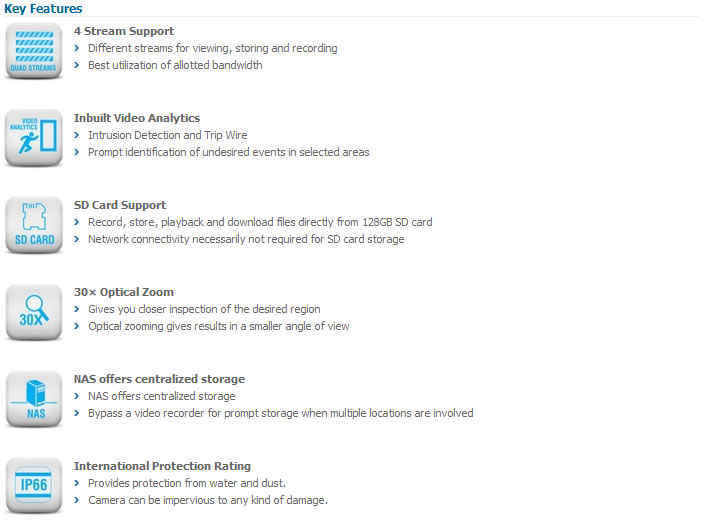

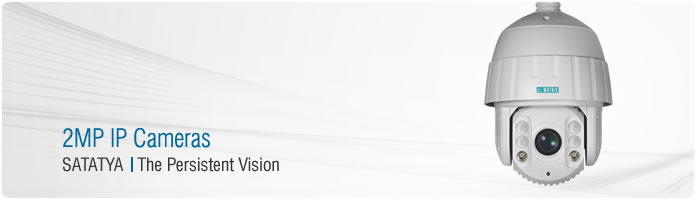

Matrix IP PTZ camera is a 2MP camera with 30x optical zooming capability, privacy masking, audio input and output, H.264/MJPEG compression technique, Quad streaming, up to 64GB SD card slot, IP66 etc. These features solve the outdoor surveillance purposes along with better inspection ways through Pan: 360° endless; Tilt: -15° ~ 90° and Digital and Optical Zooming capabilities.
Technical Specifications
|
Model |
SATATYA CIDRP20VL130CW |
|
Camera |
|
Image Sensor |
1/2.8'' Progressive Scan CMOS |
|
Maximum Image Resolution |
1920×1080 |
|
Min Illumination |
0.05Lux (F1.6, AGC ON), 0Lux with IR; B/W: 0.01Lux (F1.6, AGC ON), 0Lux with IR |
|
Shutter Time |
1 ~ 1/10,000s |
|
Day & Night |
IR Cut Filter |
|
Focus mode |
Auto / Semiautomatic / Manual |
|
Privacy Masking |
2 Privacy Masks Programmable |
|
White Balance |
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
|
Digital Noise Reduction |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
|
Lens |
|
Focal Length |
4.3 ~ 129mm |
|
Zoom Speed |
Approx. 3s(Optical Wide-Tele) |
|
Angle of View |
65.1 ~ 2.34 degree (Wide-Tele) |
|
Aperture Range |
F1.6 ~ F5.0 |
|
Minimum Working Distance |
10 ~ 1500mm(Wide-Tele) |
|
|
Pan and Tilt |
|
Pan / Tilt Range |
Pan: 360° endless; Tilt: -15° ~ 90°(Auto Flip) |
|
Pan / Tilt Speed Pan Manual Speed |
0.1° ~ 160°/s, Pan Preset Speed: 240°/s |
|
Tilt Manual Speed |
0.1° ~ 120°/s, Tilt Preset Speed: 200°/s |
|
|
Infrared |
|
Infrared IR Distance |
Up to 100m |
|
Smart IR |
Yes |
|
|
Input and Output |
|
Monitor Output |
1 BNC |
|
Audio Input |
1 Mic in/Line in Interface, Line Input: 2 ~ 2.4V[p-p]; Output Impedance: 1KΩ, ±10% |
|
Audio Output |
1 Audio Output Interface, Line Level, Impedance: 600Ω |
|
|
Network |
|
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
|
Frame Rate |
50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720);
60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720) |
|
Image Compression |
H.264/MJPEG |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
Simultaneous Live View |
Up to 6 |
|
Streams |
Dual Streams |
|
Mini SD Memory Card |
Micro SD slot, up to 64GB |
|
User/Host Level |
Up to 32 Users, 3 Levels: Administrator, Operator, User |
|
Security |
User Authentication (ID and PW), Host Authentication (MAC address), IP Address Filtering |
|
|
Integration |
|
Application Programming |
Open-ended API, Support ONVIF, PSIA and CGI |
|
Web Browser |
IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ |
|
|
General |
|
Operating Conditions |
-30 °C ~ 65°C (-22°F ~ 149°F), 90% or less RH |
|
Power Supply |
24 VAC |
|
Power Consumption |
Max. 30W |
|
Protection level |
IP66, TVS 4,000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Dimension |
Φ220×353.4mm (Φ8.66"×13.91")(Outdoor) |
|
Weight |
5.5kg(12.13Ibs) |
|
Mount Option |
Long Arm Wall Mount |
|
