Overview
IP Cameras are considered to be the next big thing in the video surveillance industry. IP technology is slowly and gradually replacing the closed circuit analog technology. For larger facilities and higher security, IP cameras are superior in terms of performance and quality.

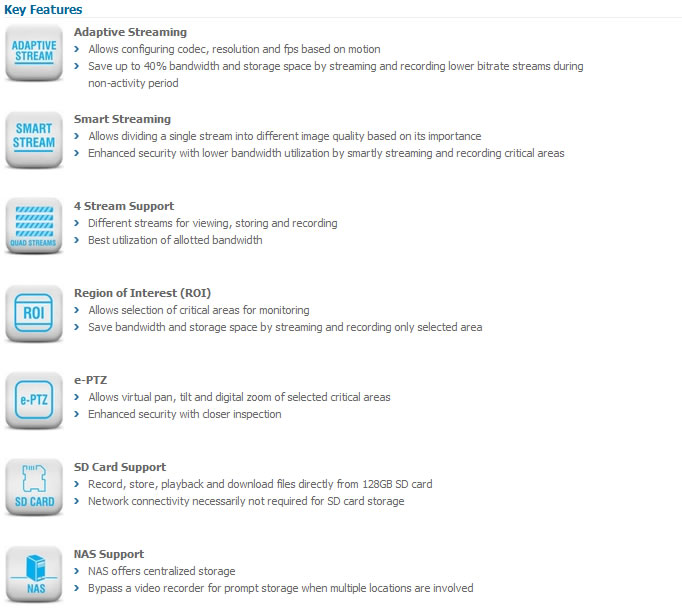

Matrix 3MP IP cameras come in IR Bullet and IR Dome cameras provide higher image quality along with various features like adaptive streaming, smart streaming, region of interest, e-PTZ etc. which fulfill varied indoor and outdoor purposes of multiple location enterprises, manufacturing units, hospitality industry where higher security is essential.
Technical Specifications
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Shutter Time |
1s~1/12500s |
Lens |
Board Lens 3.6mm |
Effective Pixels |
2048*1536 |
Lens Mount |
M12 |
Day & Night |
IR Cut Filter with Auto Switch |
Digital Noise Reduction |
3D DNR |
|
Compression Standard |
Video Compression |
H.264/MJPEG |
Bit Rate |
32 Kbps ~ 8192 Mbps |
Streams |
Triple Streams |
|
Image |
Maximum Image Resolution |
2048*1536 (3MP) |
Frame Rate |
50Hz: 25fps ( 2048*1536 );25fps (1920*1080p); 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps(2048*1536);30fps (1980*1080);30fps (1280 × 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480) |
Image Settings |
Saturation, Brightness, Contrast, Sharpness , Exposure Settings Adjustable |
Event Detection |
Motion Detection, Video Tamper, IP Conflict, Storage Alerts, Network Disconnect |
Advance settings |
BLC, Scheduled DAY and NIGHT Profile or Auto Switch for IR and Image Appearance (Brightness, Hue, Saturation & Contrast) |
ROI |
Yes |
Smart Recording |
Yes |
Smart Streaming |
Yes |
Advance settings |
Yes |
Edge Recording |
Yes |
|
Network |
Network Storage |
NAS |
Alarm Trigger |
Motion Detection, Video Tamper |
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv6 |
Interoperability |
ONVIF |
Security |
User Authentication, Watermark |
|
Interface |
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
Reset Button |
Yes |
Local Storage |
SD Card (128GB) |
|
General |
Power Supply |
12 VDC, PoE (802.3af) |
Power Consumption |
Max.10W |
Number of IR LEDs |
2 Pieces IR Array LEDs |
IR Range |
Up to 30 meters |
Dimension |
110×88×262mm |
Weight |
772gms |
|
SATATYA
CIBR30FL60CG
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Shutter Time |
1/25s (30s) ~ 1/100,000s |
Lens |
Board Lens 6mm |
Effective Pixels |
2048*1536 |
Lens Mount |
M12 |
Day & Night |
IR Cut Filter with Auto Switch |
Digital Noise Reduction |
3D DNR |
|
Compression Standard |
Video Compression |
H.264/MJPEG |
Bit Rate |
32 Kbps ~ 8192 Mbps |
Streams |
Triple Streams |
|
Image |
Maximum Image Resolution |
2048*1536 (3MP) |
Frame Rate |
50Hz: 25fps ( 2048*1536 );25fps (1920*1080p); 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps(2048*1536);30fps (1980*1080);30fps (1280 × 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480) |
Image Settings |
Saturation, Brightness, Contrast, Sharpness , Exposure Settings Adjustable |
Event Detection |
Motion Detection, Video Tamper, IP Conflict, Storage Alerts, Network Disconnect |
Advance settings |
BLC, Scheduled Day and Night Profile or Auto Switch for IR and Image Appearance(Brightness, Hue, Saturation & Contrast) |
ROI |
Yes |
Smart Recording |
Yes |
Smart Streaming |
Yes |
Advance settings |
Yes |
Edge Recording |
Yes |
|
Network |
Network Storage |
NAS |
Alarm Trigger |
Motion Detection, Video Tamper |
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv6 |
Interoperability |
ONVIF |
Security |
User Authentication, Watermark |
|
Interface |
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
Reset Button |
Yes |
Local Storage |
SD Card (128GB) |
|
General |
Power Supply |
12 VDC, PoE (802.3af) |
Power Consumption |
Max.10W |
Number of IR LEDs |
2 Pieces IR Array LEDs |
IR Range |
Up to 30 meters |
Dimension |
110×88×262mm |
Weight |
772gms |
|
SATATYA
CIDR30FL36CW
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Shutter Time |
1s~1/12500s |
Lens |
Board Lens 3.6mm |
Effective Pixels |
2048*1536 |
Lens Mount |
M12 |
Day & Night |
IR Cut Filter with Auto Switch |
Digital Noise Reduction |
3D DNR |
|
Compression Standard |
Video Compression |
H.264/M-JPEG |
Bit Rate |
32 Kbps ~ 8192 Mbps |
Streams |
Triple Streams |
|
Image |
Maximum Image Resolution |
2048*1536 (3MP) |
Frame Rate |
50Hz: 25fps ( 2048*1536 );25fps (1920*1080p); 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps(2048*1536);30fps (1980*1080);30fps (1280 × 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480) |
Image Settings |
Saturation, Brightness, Contrast, Sharpness , Exposure Settings Adjustable |
Event Detection |
Motion Detection, Video Tamper, IP Conflict, Storage Alerts, Network Disconnect |
Advance settings |
BLC, Scheduled DAY and NIGHT Profile or Auto Switch for IR and Image Appearance (Brightness, Hue, Saturation & Contrast) |
ROI |
Yes |
Smart Recording |
Yes |
Smart Streaming |
Yes |
Advance settings |
Yes |
Edge Recording |
Yes |
|
Network |
Network Storage |
NAS |
Alarm Trigger |
Motion Detection, Video Tamper |
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv6 |
Interoperability |
ONVIF |
Security |
User Authentication, Watermark |
|
Interface |
Communication Interface |
1 RJ45 10/100Mbps Ethernet Interface |
Reset Button |
Yes |
Local Storage |
SD Card (128GB) |
|
General |
Power Supply |
12 VDC, PoE (802.3af) |
Power Consumption |
Max.10W |
Number of IR LEDs |
2 Pieces IR Array LEDs |
IR Range |
Up to 30 meters |
Dimension |
Diameter of Base Plate: 136mm
Height:106mm |
Weight |
735gms |
|
