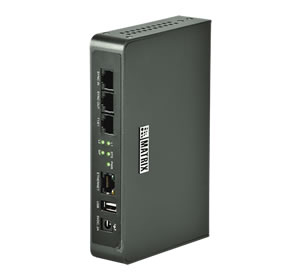

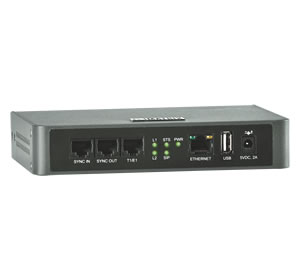

SETU VTEP
Product Code : SETU VTEP
Availability : In Stock
SETU VTEP is a compact, dedicated and feature-rich VoIP to T1/E1 PRI gateway. It is a single-span gateway offering 30 simultaneous VoIP calls. SETU VTEP gateway uses PRI interface of PBX to connect IP network and delivers cost benefits of VoIP telephony. For an IP based system it also provides T1/E1 PRI trunking.
SETU VTEP
Overview
The gateway efficiently delivers toll-grade voice quality with industry standard voice codecs and advanced QoS techniques. Multiple mounting options and remote management through web-based console adds to the operating ease.
The gateway is suitable for SMBs, Large enterprises, VoIP service providers and System integrators for smooth migration to the new age IP telephony. It helps them to control the communication overheads and realize an earlier return on investment through advanced features and functionalities. With SETU VTEP, multi-branch offices can use their existing broadband connections to setup cost-effective IP communication among them.
Specifications
Model:
| SETU VTEP | Gateway with 32 VoIP Channels and 1 T1/E1 PRI Port |
VoIP Port:
| Protocol | SIPv2, SDP, RTP (RFC 2833) |
| Connector | Ethernet (RJ 45) |
| SIP Accounts | 32 |
| Echo Cancellation | G.168 with up to 128ms Tail length |
| Voice Codecs | G.711 (A/µ Law), G.723.1, G.729AB, GSM-FR and iLBC |
ISDN PRI Port:
| Channels | T1- 23B+D, E1- 30B+D |
| Connector | RJ45 |
| Operational Mode | Software Configurable NT/TE modes |
| Switch Variant |
T1 RBS - AT&T 5ESS, DMS-100, US Ni2 E1 CAS - ETSI NET5,ITU-T Q.921, ITU-T Q.931 |
| Framing |
T1 RBS - SF-D4/ESF E1 CAS - CEPT1 (with/without CRC) with CAS MF |
Power Supply:
| Input | External Power AdaptorOutput: 5VDC@2A |
| Power Consumption (Typical) | 5W (Typical) |
Other:
| Dimension (WxHxD) | 16.1x10.1x3.0 cm (6.3”x 4”x 1.18”) |
| Mounting Options | Wall Mount, Table Top and Rack Mountable |
| Operating Temperature | -10°C to +50°C (14°F to +122°F) |
Applications

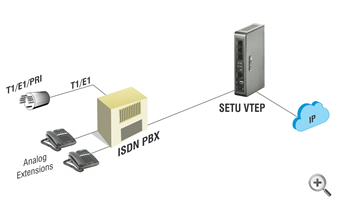

VoIP Gateway for Traditional ISDN PBX
- VoIP Access for legacy phone systems with T1/E1 PRI interface
- Programmable TE/NT modes
- Retain existing PBX infrastructure and dialing habits
- Existing terminals can be used to place VoIP calls
- Network clock synchronization for error-free communication
- Compatible with most make of ISDN PBX

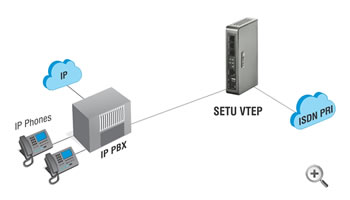

ISDN PRI Gateway for IP-PBX
- ISDN PRI Trunking for IP based System
- Deployable in all SIP based VoIP networks
- Connectivity to traditional and wide-spread ISDN PRI network

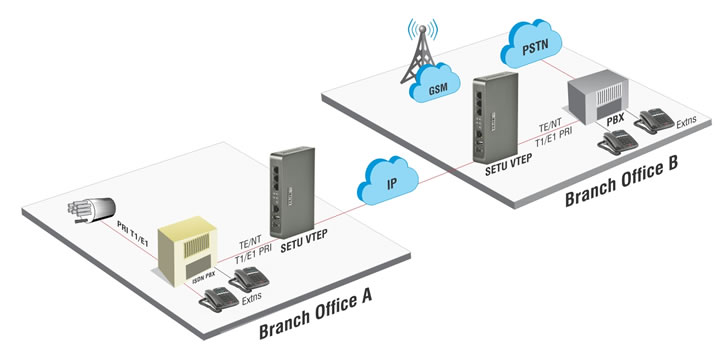

Peer-to-Peer Calling
- Virtually access trunk connectivity of remote location
- Connect multiple branch offices over cost-effective IP network
- Reduce higher inter-network call charges
- Hop-on and Hop-off calls to and from IP and ISDN PRI network
Key Features
- Up to 30 simultaneous VoIP to ISDN PRI calls
- T1/E1 PRI Port with programmable TE/NT modes
- Deployable in all SIP based VoIP network
- Register with multiple SIP service providers
- Simultaneous peer-to-peer and proxy calling
- ISDN network clock synchronization for error-free communication
- Fax over IP (T.38 and Pass-Through)
- VLAN tagging for advanced networking
- Restrict unwanted calls with list of denied numbers
- Call details records of 2000 calls
- PIN authentication to prevent unauthorized usage
- Caller ID presentation and restriction
- SNMP Monitoring
- TR-069 Auto-Configuration
- VoIP Security over SRTP/TLS Encryption
- Web based configuration and management
