ETERNITY GE12S
Product Code : ETERNITY GE12S
Availability : In Stock
ETERNITY GE12S is a modular gateway scalable up to 384 IP channels and 8 T1/E1 ports. The gateway interfaces with ISDN PRI PBX using programmable TE/NT PRI ports. The gateway also connects PBX or key phone systems to an IP network.
ETERNITY GE12S
Overview
ETERNITY GE12S is a modular VoIP to ISDN PRI gateway scalable up to 384 IP channels and 8 T1/E1 PRI ports.The gateway interfaces with ISDN PRI PBX using programmable TE/NT PRI ports. The gateway also connects PBX or key phone systems to an IP network. It offers 16 SIP accounts with flexibility to register with various SIP providers and places calls via most cost-effective service providers.
Organizations with traditional PRI PBX can now seamlessly migrate to IP, while preserving their existing communication infrastructure and dialing patterns. For organizations already migrated to IP, this gateway offers connectivity to fixed-line networks using T1/E1 interface.
ETERNITY GE gateway is a future-proof and scalable solution to grow with the communication needs of an organization. With Matrix ETERNITY GE gateway, service providers and system integrators can effectively deliver carrier-grade services as well as enterprise based applications.
Specifications
System Capacity:
| Expansion Slots | 12 |
| Expansion Cards |
16/32 VoIP channels per Interface Card 1ISDN PRI lines per Interface Card |
VoIP Port:
| Protocol | SIP v2, SDP, RTP (RFC 2833) |
| Connector | Ethernet (RJ 45) |
| SIP Accounts | 16 |
| Simultaneous VoIP Calls | 16 to 384 |
| Echo Cancellation | G.168 with up to 128ms Tail length |
| Voice Codecs | G.711 (A-law, µ-Law), G.723, G.729AB, GSM-FR, GSM-EFR and iLBC Voice Codec |
ISDN PRI Port:
| Channels | Up to 8 PRI Ports |
| Connector | RJ45 |
| Operational Mode | Software Configurable NT/TE Modes |
| Interface | S/T Interface, Point to Point and Point to Multipoint |
| Switch Variant | AT&T 4ESS, DMS-100, ETSI NET3, ITU-T Q.921,ITU-T Q.931, NTT INS64, US NI1 (National ISDN 1), France VNx Signaling |
Power Supply:
| Input |
Option 1 (Mains): 100-240 VAC, 47-63 Hz Option 2 (DC): 48VDC +/- 20% |
| Power Consumption | 50W (Typical) |
Other:
| Dimension | 41.2x16.0x25.4cm (16.22"x6.29"x10.0") |
| Mounting Options | Wall Mount, Table Top and 19" Rack Mount |
| Operating Temperature | -10° C to +50° C (14° F to +122° F) |
Applications

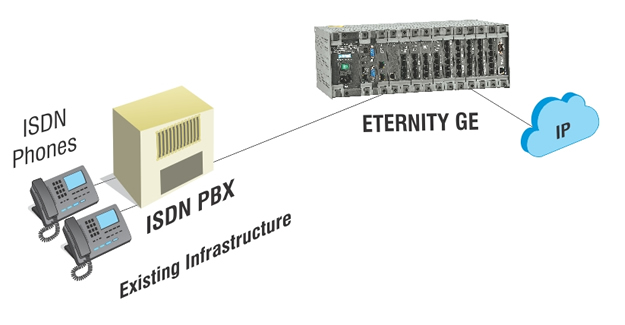

VoIP Gateway for ISDN PRI PBX
- Seamless connectivity to cost-effective IP network
- Maintain existing PBX infrastructure and dialing habits
- Programmable TE/NT Modes for easy integration
- No need of static IP with Dynamic DNS support
- Compatible with all ISDN PRI PBX

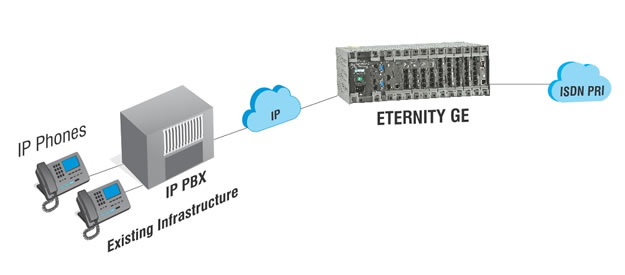

ISDN PRI Gateway for IP-PBX
- ISDN PRI Trunking for IP-PBX
- Deployable in all SIP based VoIP networks
- Scalable gateways, grow as per business need
Key Features
- Modular architecture with scalable VoIP and ISDN PRI channels
- Completely non-blocking architecture
- Restrict unwanted calls with list of denied numbers
- Direct number dialing on the cellular networks with automatic number translation
- Programmable TE/NT mode for easy integration with existing communication infrastructure
- Simultaneous registration with multiple SIP service providers
- Emergency number dialing
- Hotline extension setting
- Video conferencing (H.320) through PRI NT port
